Understanding Stall Current in DC Motors

In the functioning of DC motors, one crucial aspect that both engineers and enthusiasts must comprehend is the stall current, which happens when the motor stops rotating altogether, thus drawing the maximum current. In this piece of writing, we will talk about the stall current, what it means for the performance of motors, and the dangers when motor stall current is surpassed.

What Is Stall Current?

The stalled current, also known as motor stall current, refers to the amount of current the motor consumes while in a stalled condition. A stalled condition can be experienced under certain circumstances, for instance, if the motor has experienced loads or mechanical blockage while working. The stall current is usually several times higher than the rated current of the motor, typically up to three or five times higher.

Why Is Stall Current So Much Higher Than Rated Current?

The reason that stall current is significantly greater than the rated current can be found in the phenomenon of back EMF (electromotive force) that takes place during regular operation. When the electric motor is used in normal conditions and is rotating, back EMF opposes the supplied voltage and consequently limits the value of the current. However, if the motor is in a stall condition, back EMF equals zero, resulting in maximum current flowing in the motor, causing problems related to overheating and possible failure in case of a prolonged stall.

Matching Controller Specifications

Choosing a proper controller for a DC motor must involve considering stall current, which plays a decisive role. An ideal controller should be rated for at least 1.5 times or preferably 2 times the stall current of the motor. By including this additional margin, the possibility of tripping the circuit out prematurely is eliminated.

Identifying Overload Conditions Through Stall Current

Stall current monitoring can be used as a diagnostic method to identify an overload condition by looking for a drastic rise in current, indicating that the motor has reached the point where it is close to getting stalled. The rise in current suggests there is too much resistance because of binding components, mechanical failures, or excessive load. By examining the current values, the engineers can make the right decisions in relation to torsion loads and the appropriateness of the application.

Potential Hazards of Excess Stall Current

Continuous drawing of unnecessary stall current could cause overheating, insulation failure, and eventually motor burnout. Hence, it is essential for users to understand the limits regarding the operation of their DC motors and create systems that avoid stall conditions. The implementation of safety measures such as overload protection and diligent load study is important for motor efficiency and service life.

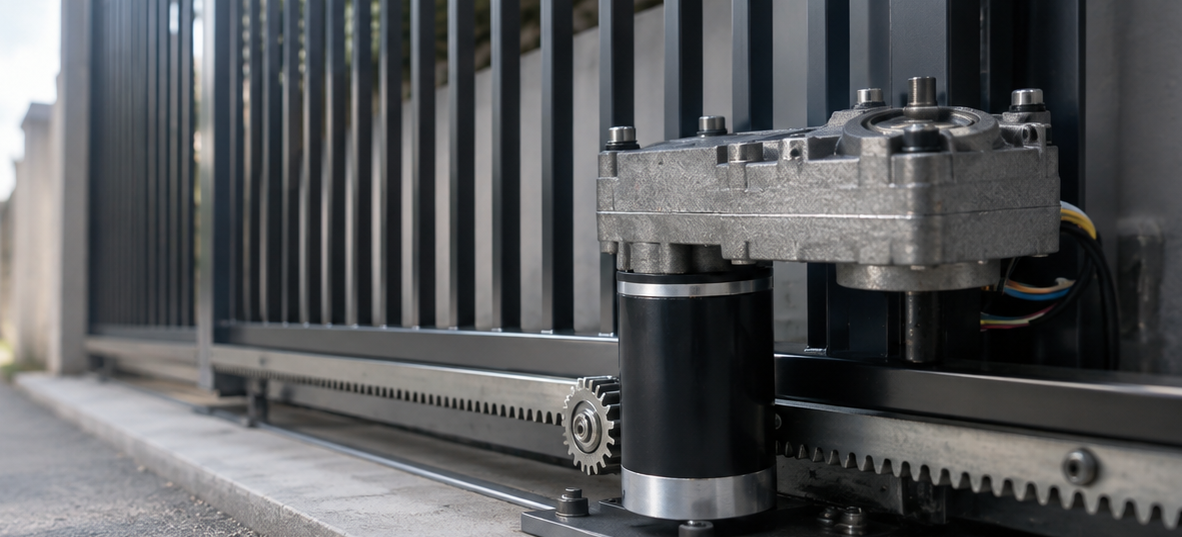

Stall Current in Gear Reduced Motors

When gear reduction is applied, knowledge of the stall current becomes increasingly complicated. Gear boxes increase stall torque of the motor, while also affecting stall current, depending on the gear ratio. Higher gear ratios produce more torque but still drive a need to manage stall current to avoid possible failure.

FAQ

Q: Why does a stall current far exceed the rated current?

A: When it comes to stall current, it is rather high since, during the period of stall, back EMF would be equal to zero, making the motor draw the maximum amount of current it can.

Q: What size controller do I need for stall current?

A: One should use a controller whose rating is 1.5 to 2 times greater than the stall current amount of a corresponding motor. This specification allows avoiding temporary overloads and will ensure a smooth work process during operation.

Q: How can stall current indicate if a motor is overloaded?

A: An increase in the current levels to approximately the stall current suggests that there may be a high resistance or an overload condition in the motor.
