5 Overlooked Motor Installation Details That Can Shorten Your Equipment Lifespan by 50%

Usually when a motor fails, it doesn't happen due to an immediate or spontaneous reason. In the majority of factories and facilities using robots to automate processes, pump applications, conveyor applications, medical devices, packaging machinery, and other types of automated equipment and processes, early motor failure is often preceded by a small mistake in motor installation such as misaligned shaft, inadequate motor ventilation, loose wire connections, excessive loading on the gear box connected to the motor, or an improperly installed mounting surface causing excessive vibration.

While these may not seem like big items during assembly, they will combine to create an overall increase in heat bearing stress, current draw, noise and insulation breakdown over weeks or months. The end results will be shorter motor life, increased downtime, higher maintenance costs and unexpected replacement costs.

This guide describes five motor installation specifics that are frequently overlooked, why they are important, how to prevent them from occurring, and practical measures you can use to safeguard Dc Motors, AC motors, DC gear motors, micro motors, and all small drive systems in actual applications.

Why Motor Installation Has Such a Big Impact on Service Life

Each motor has a specified mechanical, electrical, and thermal operational range; if it is installed in an application that exceeds one of these ranges, the motor's supporting components will typically age more quickly than they would if they were used within their specified design ranges. For example, the bearings will usually wear out early, the windings will experience excessive heat, the gears will lose their ability to keep lubrication, and electrical contacts may become unreliable or cause damage.

The motor often isn't weak. The way that it is mounted, coupled, powered, loaded, cooled or protected creates the weak point. If a motor is installed well, it can operate more in its rated condition and not be unnecessarily stressed. In contrast to this, if a motor is installed poorly it will impose requirements on the motor that the motor was never intended to accommodate.

The principal purpose of this for all purchasers; engineers; and maintenance personnel is to highlight that increasing the lifespan of a motor does not solely hinge on purchasing quality motors; it also depends on how the motor is installed initially.

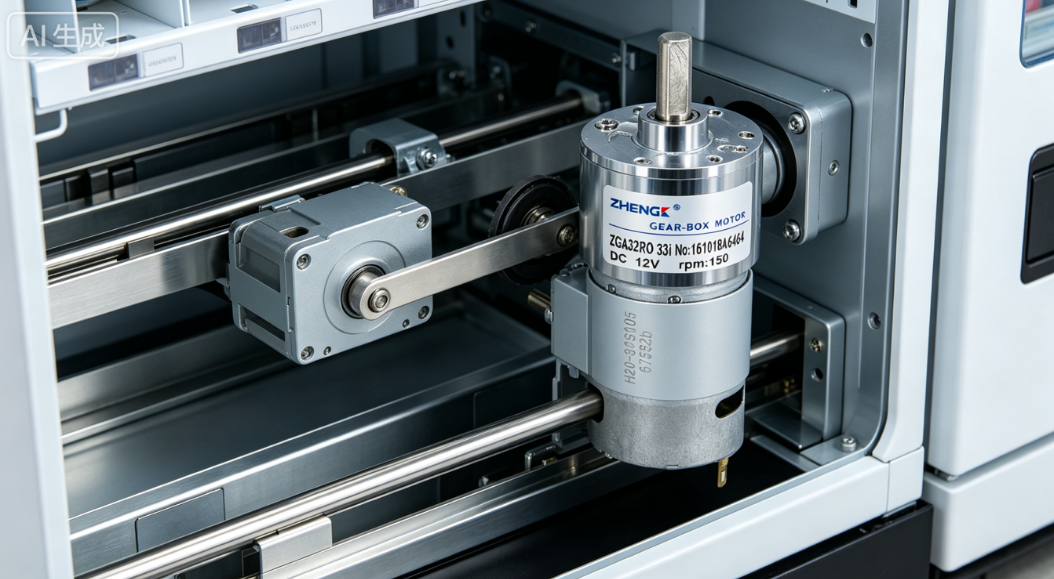

Detail 1: Shaft Misalignment and Poor Coupling Setup

Misalignment of a motor shaft is one of the most prevalent problems with installations, particularly for motors connected to a gear box, pulley, belt, screw, pump, fan and any type of custom transmission design. A small degree of angular or parallel misalignment will generate high axial or radial loads on the motor shaft as well.

When the motor's shaft misalignment with the driven element occurs, the bearings take in an average of an additional load each revolution of the motor shaft. At some point in time, this can lead to the bearings creating additional noise and vibration, increasing the temperature of the bearings, degrading the lubricant and causing lower efficiencies for torque transmission. With regard to smaller motors and Micro Motor assemblies, those types of assemblies can experience damage at a substantially higher rate since their internal bearing and motor shaft tolerances are smaller in nature.

A common indicator is when a motor is well running without any load on it however after it is put back in the final tool assembly, it will have abnormal sounds or increase temperature. Other indicators of an abnormal installation are inconsistent wear patterns showing on the coupling or belt, as well as on the gear or through the mounting holes.

How to Prevent Alignment-Related Motor Damage

Prior to completely tightening the mounting bolts, it’s important to ensure both the motor shaft and the driven shaft are perfectly aligned along their longitudinal axis without being forced together. If a coupling is to be used, whenever possible, select a flexible coupling; flexible couplings will accommodate some minor dimensional variances in installation but should not be an alternative to aligning properly.

Avoid excessive tension in belt-driven systems. An overly taut connection, while it may feel much more stable than a loose one, can actually put an overload on the bearings of the motor. Gear-driven systems require the correct gear mesh and no excessive side load should be introduced to the output shaft. For DC Gear Motors, ensure that you look at the gearbox output shaft load rating and not just the motor rated torque.

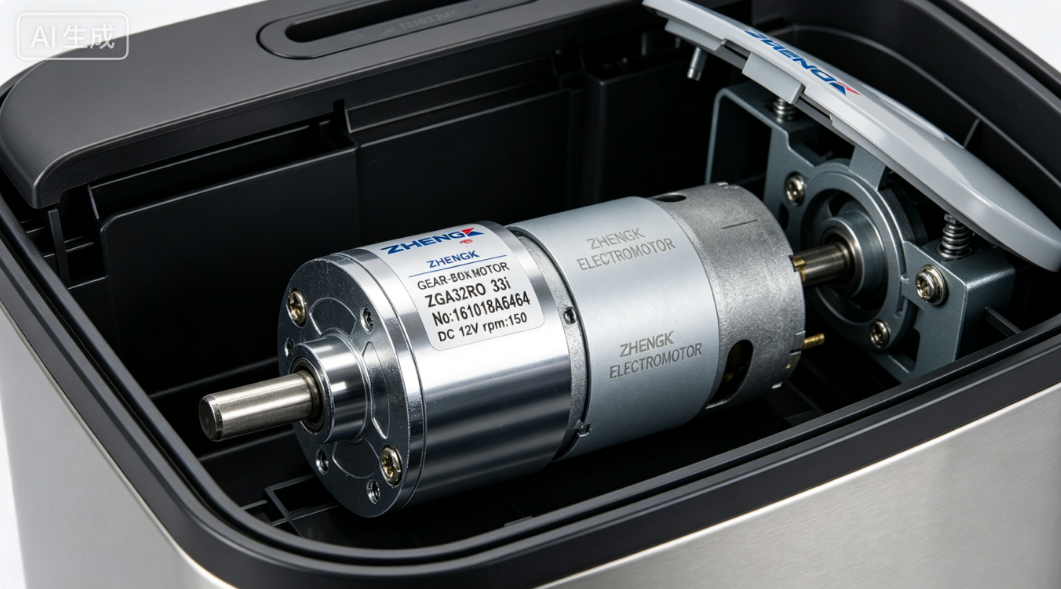

Detail 2: Inadequate Heat Dissipation and Poor Ventilation

Motor reliability is often greatly affected by heat. A motor that continuously operates at high temperatures will have accelerated deterioration of the insulation and loss of magnetism and also will break down the lubricant in the bearings and result in reduced efficiency. In extreme instances, overheating may cause the windings to fail or loose their magnetism permanently if permanent magnet motors are used.

The installation layout usually traps heat, for example by placing an electric motor inside an enclosed box with no air circulation or mounting too close to a heating source (i.e., furnace), insulating the area around the motor, or installing it in an area where there's limited open area for the heat to escape upward due to limited spaces. Other items such as dust, oil residue, or blocked vents can add to the heat build up inside the installation.

Heat management is critical with DC motors and small gear motors, as the motor's size may be quite small, yet the load could be applied for an extended amount of time (e.g., constantly running) or may have many start/stop cycles. Therefore, while a motor may only feel "warm" after a brief test, it could be dangerously hot to touch after operating in true service for several hours.

Practical Heat Control Tips

Prior to installing the motor, review its rating for the maximum amount of time that it can run continuously (in accordance with any stated intermittent use limitations). If the motor is rated for an intermittent use cycle, be sure to test and evaluate how long the motor will run under continuous use without overheating before using it as a continuously used product. Allow for adequate airflow around the motor's case; also, if an enclosure is small, you may want to add ventilation holes, fans, heat-transfer-mounting plates, or thermal monitoring devices to ensure continued operation of the equipment.

The ambient temperature is also an essential factor to think about. A motor's performance can be affected by many factors when it is used in outdoor equipment, vending machines, industrial cabinets, and medical equipment where the temperature inside the equuipment can rise much higher than the room temperature where the motor was originally run. If you are unsure of a motor's performance, measure the case temperature of the motor during actual operation with a load (not just a no-load test).

Detail 3: Incorrect Voltage, Current, and Power Supply Selection

Another possibility for decreasing a motor's life is electrical mismatches. A motor may continue to operate in terms of rotating even when powered with a mismatched voltage (e.g., too high or too low) or an unstable power source. However, this does not provide an assurance regarding safe operation of the motor.

Motors can be affected by supply voltage too. If the voltage is too high, the motor will run faster than expected and be able to generate more heat; therefore, there will be more wear on the brushes (in the case of brushed DC motors). In addition, an excessive supply voltage levels will increase potential stress on the insulation within the motor. Conversely, if the voltage is too low, the motor may experience difficulties starting, draw excessive current when under load, stall more easily, and overheat. An upsized power supply may also lead to voltage drops, unstable operation, and repetitive failures to start.

When selecting your DC motor power supply to ensure your application(s) will run correctly and reliably, it needs to meet all four criteria: nominal voltage, anticipated load current/peak starting current and stall conditions, since many motors draw many times their rated current at start-up or suddenly changing loads. If the power supply cannot provide enough peak current (in conjunction with other desired properties), the system performance will drop and potentially damage or harm the motor due to its limits/cycles being exceeded or exceeded.

What to Check Before Powering the Motor

Verify the rated voltage and permissible operating range from the motor's data sheet. Determine if the motor driver, controller, or power source can supply sufficient continuous and peak current. As a rule, if the driver must provide speed control for the motor, it is not advisable to rely on an unreliable or makeshift power supply.

When using battery-operated devices, keep in mind that the voltage of the battery decreases as it discharges. A motor may perform well with a fresh battery, but it will struggle as its battery falls below an acceptable level of power output. Because of the importance of stable voltage regulation to the performance and longevity of precision instruments, robots, and automated control systems, the value of forming a well-thought-out selection process for operations and maintenance is critical.

Detail 4: Ignoring Load Conditions, Starting Torque, and Duty Cycle

When choosing or installing a motor, you cannot simply use either the no-load speed or the rated voltage to determine if it will work correctly for your application. The question you really need to ask yourself is how you are going to use the motor; specifically, can it handle the actual load for which it was designed? Many motors fail prematurely because they have been operated at or near rated load too often, stalled too much and/or started with a heavy load.

Loads are not always constant in an application. In some cases, the motor will have a peak load at the beginning of operation, and then the load may change due to other factors, including sudden jamming; changing direction; accelerating; moving a great distance up; and increasing friction due to accumulation of dust or wear on the surfaces. If proper considerations are not made for peak load conditions, motors may operate at higher than anticipated temperatures even though the average load appears to be acceptable.

It's just as important to consider the duty cycle as well; for example, a motor may be run for five seconds during one minute will develop a very different thermal condition than one running continuously for several hours. A micro motor could be used in a small actuator (or lock/dispenser/handheld device) for short bursts of operation but will fail prematurely if operated longer than its specified duty cycle.

How to Match the Motor to the Real Load

Evaluate what is required to determine or calculate the torque requirement for starting, running normally, and in a worst-case situation. If a gearbox is part of the system, find the output torque and oputput shaft speed using the gearbox reduction ratio and the efficiency of the gearbox considering the maximum allowable load on the output shaft. For applications with high frequency of starting/stopping/reversing the load, provide yourself with some margin of safety prior to selecting a motor that meets your needs on a minimum basis.

Not only should you do all of your testing on a work bench, it is a good idea to run the motor in the end product too. There can be variables in a working machine like friction, vibration, misalignment, temperature and (possibly) control logic that you might not see doing simple tests on the bench.

Detail 5: Weak Mounting, Vibration, and Mechanical Shock

To ensure an adequate and stable mounting structure for a motor, secure fastening techniques, heavy-duty mount brackets, rigidity in mounting surfaces, and overall rigidity in the frame of the device are necessary. Vibrations can cause mechanical shock due to the looseness of terminals; bearings can be damaged; noise levels can be elevated; the signals generated from an encoder can be affected; and the solder joints may crack, causing wear in the gearbox due to the vibration.

Mechanical shock has the potential to be equally as damaging as sustained vibration on mobile equipment, smart devices, automotive equipment, robotics, industrial tools, or outdoor systems. If a motor is dropped, hit, or mounted in a high-impact area; it may sustain internal damage even if still operating after the incident.

The installation quality of a small motor is something to which small motors are very sensitive. Compact parts on a small motor can quickly be misaligned, and the gear's interaction will eventually change as a result of vibration. Therefore, even for lower-power applications, proper mounting must have a solid structure.

How to Improve Mounting Stability

Use the proper screw size and torque recommended by the manufacturer. Do not overtighten screws, as this could cause bending of the housing or mounting face (especially with small gear motors). Always ensure that the mounting surface is flat and has sufficient strength to support the load of the motor.

If vibration cannot be avoided, think about using padding to dampen vibrations, reinforced bracing, locking threads, or arranging the mounting location so that shock loads will be minimized. In precision applications, it is also a good idea to test for noise and vibrations after completing the assembly of the precision product because there may only be resonances at specific speeds.

Other Installation Factors That Are Easy to Miss

Along with the five main issues already listed, there are other small factors that can make a difference in how reliable the total system will be. One of these is wiring quality. Thin wire, loose connectors or solder joints, and long cable runs can produce voltage drops or intermittent connections. In applications with motors using encoders, Hall sensors, or feedback wires, poor cable routing can add electrical noise and introduce errors into the signal.

Protecting the environment is another critical consideration. Bearings, commutators, brushes, insulation, and lubrication of the gearbox can be negatively affected by moisture, dust, metal debris, chemical vapors, and oil contamination. When operating a motor in a difficult environment, it is important to select an appropriate form of sealant, coating, enclosure protection, or motor type that is specifically suited for that environment.

Gear motors and mechanical transmission systems must also be thought about in terms of lubrication. Some gearboxes have extended life lubrication while others should be maintained based on operating conditions, such as high-temperature operation, heavy loads, or continuous use of lubricant, will degrade the lubricant.

How to Protect a Motor After Installation

Protecting a motor is an ongoing process that should happen throughout the design, installation, and maintenance of equipment. A properly protected motor will operate at a cooler, cleaner, smoother, and more reliable level than one that has not been properly protected.

Begin with overload prevention. When working with automated equipment, use current limiters, torque limiters, fuses/thermal protection to protect the motor from jamming (stuck in motion). You can also use software protection to stop the motor when the motor current exceeds a predetermined value or when it does not finish moving within the expected time.

Next, protect the motor from Heat. Keep ventilating paths (for air) open and don't place the Motor near heat sources. If the Motor is mounted in a closed Housing, it must undergo temperature testing for the highest expected Ambient temperature and Maximum load conditions.

When using a motor, keep it free of contaminants by using covers, seals or filters and properly locating the motor out of harm's way. Reduce exposure from dust, moisture, oils and metal chips by using appropriate materials for your application; for example: corrosion resistant materials and/or an IP rated enclosure for outside applications or high humidity conditions.

How to Extend Motor Lifespan in Real Applications

Generally speaking, extending the life of your motor will come from numerous smaller choices rather than a single, major upgrade or improvement. A motor properly selected, installed, and maintained is likely to outlast that same motor installed improperly.

The optimum method for designing is to include a margin in the design element. Also, the motor should not be operated continuously at or near its maximum rated load, current, speed, or temperature. Having a sufficient safety margin allows the motor to respond to actual conditions encountered in use that may vary from its rated conditions, such as changes in friction, fluctuations in voltage, the effect of aging, and unexpected load spikes.

Regular inspections are also a concern. Listen for noise changes, feel for unusual vibration; inspect wiring; monitor for abnormal speed, torque, and temperature changes. These signs can help identify problems before they become catastrophic failures. Taking action early helps minimize costly repairs and downtime.

Keep a record of performance data for motors used for production machinery or commercial products during testing. Data such as temperature, current, speed, load, and duty cycle will assist in confirming the motor's safe operation. This is particularly valuable when evaluating performance differences between multiple motor suppliers or models.

Common Signs That Your Motor Was Installed Incorrectly

A lot of clues point to improper installation. The cause of heat generated by a motor at normal load could be an overloaded condition, insufficient air flow through the motor, misalignment, or incorrect voltage. Vibration or noise from grinding on a motor could be due to alignment of its shaft, stress on the bearings, improper gear mesh, or instability of its mounting platform.

When the speed of a motor varies from one point in time to another, there are many possible causes. Some of these include the power supply being inadequate; an unstable control signal; faulty wiring; or a changing load. When a motor fails over again in the same application, it is improbable that the motor quality is to blame and most likely indicates that there is an issue with the whole system of components involved (for example, installation, load, environmental factors, and control design).

Before replacing motors due to any possible failure, you must carefully evaluate the entire motor’s operating conditions and replace each item as needed. Installing a new motor in an identical environment as previous failed motors can result in similar problems occurring again with the most recent installed motor.

Motor Installation Checklist Before Final Assembly

Prior to shipping, installing, or putting some piece of equipment into long-term use, it is also wise to verify that you’ve accomplished a few of the key elements that should be included in a simple checklist.

• Confirm the motor voltage, current, speed, torque, and duty cycle match the application.
• Check shaft alignment, coupling condition, belt tension, and gearbox output load.
• Make sure the mounting surface is flat, stable, and free from excessive vibration.
• Verify that wiring, connectors, solder joints, and grounding are secure.
• Test motor temperature under real load and expected operating time.
• Ensure ventilation, dust protection, moisture protection, and contamination control are adequate.
• Check noise, vibration, current draw, and speed stability after final assembly.

Though this checklist appears very fundamental, it will help to avoid multiple installation-related faults that lead to reduced equipment lifecycle.

Choosing the Right Motor Supplier Also Matters

Even with completely correct installation, a poor match between motor and application can still occur. A dependable motor supplier will also assist in evaluating the necessary parameters, such as operating voltage, torque, RPM, gear ratio, duty cycle, operating temperature, noise level and life expectancy.

When selecting a motor for custom applications, it is usually better to discuss the working conditions before choosing which motor will work best. For example: The type of load (e.g., static or dynamic), the angle of installation, the amount of space available for installation, the method of controlling the motor, the type of environment (e.g. indoors or outdoors), and how long you expect to operate each day, all affect the most suitable motor choice.

When dealing with a dc gear motor, dc motor, microscopic motor, or compact drive, ask for datasheets, performance curves, life test data, and installation recommendations. If the motor is matched to the application as closely as possible, the possibility of premature failure is greatly reduced.

FAQ: Motor Lifespan, Installation, and Maintenance

How long does a DC motor usually last?

A DC motor's lifespan will vary depending on several factors: type of motor (e.g. brushed vs brushless), the type of load applied, the speed and duty cycle of operation, the operating temperature, and the installation quality. Generally, a brushed DC motor's lifespan is primarily limited by the wear on the brushes and commutators in addition to the amount of wear on the rest of the components from the amount of contact with the brushes. Although a carefully designed application will allow for operation for thousands of hours on well designed equipment, overload and/or overheating, contamination (like dirt/dust), and/or improper alignment can drastically reduce the average DC Motor lifespan.

How does the lifespan of a DC motor compare with an AC synchronous motor?

Because an AC synchronous motor usually has fewer wear components than a brushed DC motor, it can often outlast a brushed DC motor when operated under stable load and with adequate cooling. Brushed DC motors may require more attention because brush wear is an inherent life-limiting factor. A properly designed and installed brushless DC motor can be very near to being as durable as an AC synchronous motor.

Which type of motor is best will be dependent on the end use (i.e., application). Many DC motors are commonly used when compactness, speed control, low-voltage functionality and compatibility with battery systems are essential. AC synchronous motors are generally used for applications that require constant-speed operation, precision timing, and stable industrial or appliance applications. Proper installation of either type of motor, managing the heat produced by the motor, and matching the load to the motor are all critical factors in attaining maximum life from the motors.

Can poor installation really reduce motor life by 50%?

There are many different factors that can negatively impact a motor's lifespan. For example, if a motor is improperly aligned with its load, subject to excessive load, improperly cooled or powered, then it will most likely experience an increase in internal stress. Due to this higher strain, bearings, windings, brushes, magnets and gears may all exhibit signs of premature wear. Specific amounts of wear or reductions in lifespan will vary based on the severity of each issue but it would not be unreasonable to assume that a motor whose installation was determined to be poor could have its overall lifespan reduced by as much as 50% or more in high-stress applications.

Why does my motor get hot after installation but not during bench testing?

Bench tests are typically performed under little or no load; however, the actual application will include mechanical loads, heat generated by the enclosure, lengths of cable, control methods, and duty cycles of operation. If a motor becomes warm only after being installed, check the torque applied to the load, the alignment of the motor’s shaft, the ventilation around the motor, the stability of the incoming voltage, and whether the motor has been operating outside the manufacturer's recommended duty cycle.

Is a bigger motor always better for longer life?

There are occasions when larger electric motors can have a cooler operating temperature than a smaller electric motor operating under an equal loading condition; however, using a larger electric motor can also increase the cost, size, weight, and power consumption of the drive system. A better approach would be to choose a motor that has an adequate safety factor or margin of safety to withstand the peak load and the applicable operating period without exceeding the necessary size.

What is the most important factor for extending motor life?

Controlling heat is an important factor along with Load Alignment Voltage and Ventilation, etc. In general, any cooling (and smooth) operation of the motor under the specified load will result in a significantly longer life than operating at or near the limits while being continuously hot/vibrating.

When Should You Replace a Motor Instead of Repairing It?

Replacing a motor may make better sense than repairing it when there is significant bearing noise, windings burned out, insulation damaged, excessively worn out brushes, cracked magnets, that are missing several gear teeth, or the motor has been overheating repetitively. For the capitalization of small or micro DC, the only time when it may be feasible to repair a DC motor rather than replace one will be when that motor is part of a high cost/characteristic assembly.

Before replacing a motor, it's important to first identify what caused the failure. If the original failure was due to misalignment, overload, excessive temperatures, or contamination, a replacement will likely fail again. By conducting a short failure analysis, you will save considerable time and money in the future.

Final Practical Advice for Engineers and Buyers

Remember to consider the motor installation during the design or purchase of your equipment. This should happen before you move on to assembly. Make Sure there is sufficient room for any wiring, ventilation, screw mounting, coupling access, and inspection and service of the motor as well. And when you begin mass production, confirm the actual operating temperature and current draw of the motor.

When replacing a motor for existing equipment, it is not enough just to match voltage & size; you also need to check items like torque, speed, shaft type, gearbox ratio, duty cycle (length of time it's used), mounting position and environmental conditions. Just because an electric motor appears similar to another one does not mean they will perform in the same way if their internal design or rating is different.

These five hidden elements of this guide—alignment, thermal dissipation, electrical matching, load conditions, and mount stability—frequently account for why a motor malfunctions prematurely compared to others which function reliably over extended periods. If you treat the Motor installation process as an essential engineering task rather than a basic assembly process, then you will minimize downtime, secure your equipment, and increase significantly the longevity of your motor-driven systems.
