Products

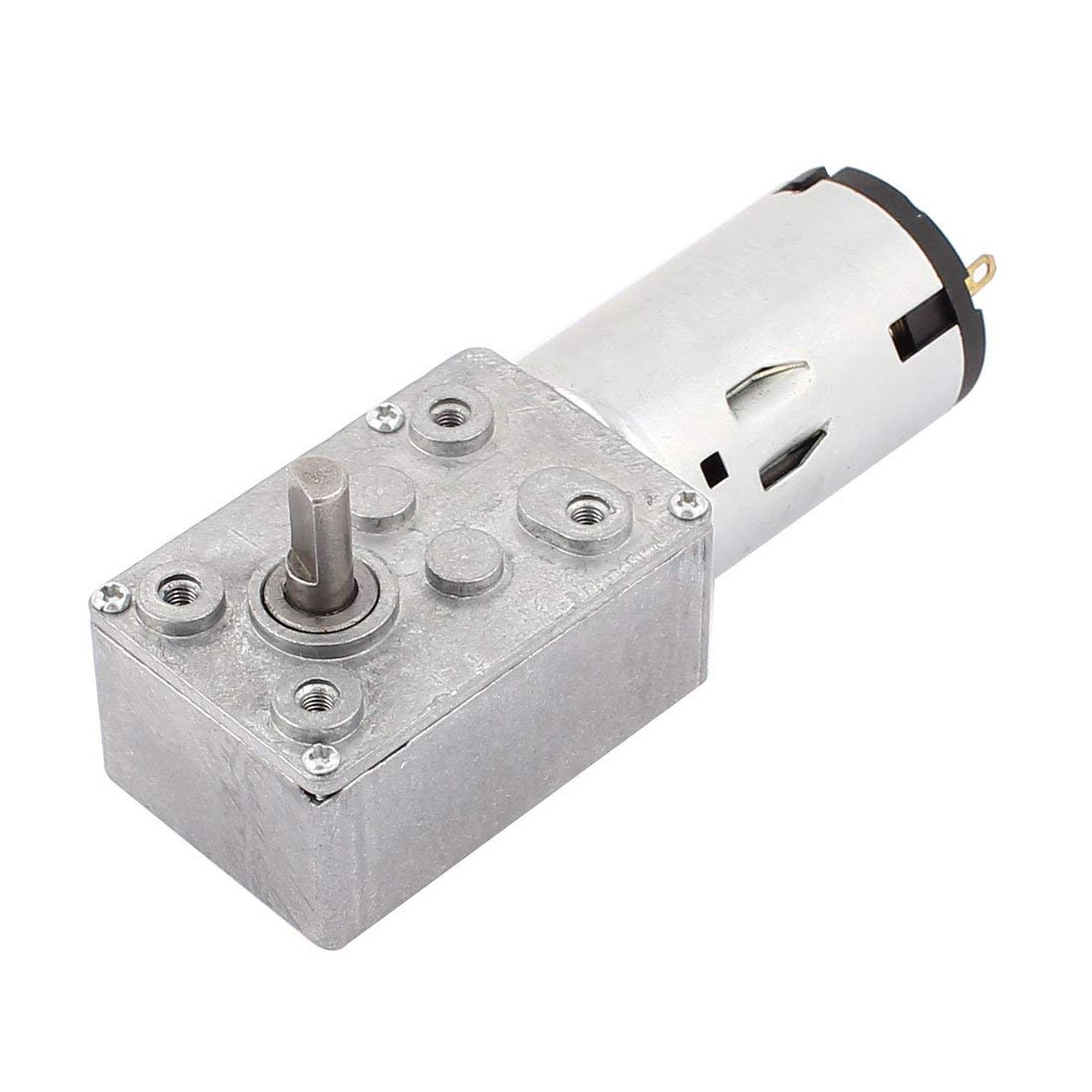

Worm Gear DC Motor RF370- JSX370 Zhengke ZWL-47...
Model: JSX370 <ZWL-47FP>
Gearbox type: Metal Worm Gearhead
Bearing: Sleeve Bearing
Motor type: RF370
Output Power: 1W~3W
Zhengke supply JSX seires, DC Worm Gear Motor, with RF370 small dc motor
6V,12V,24V available
Worm gear motor manufacturer
This motor features a worm gear system, known for its ability to deliver high torque at low speeds. The motor is ideal for applications that require powerful rotational force in a compact form. Whether it’s for lifting heavy loads, precision positioning, or driving industrial machinery, this motor ensures smooth and reliable torque delivery.
ZWL-395 PMDC Motor DC Worm Gear Motor For Elect...
Model: ZWL-395
Motor type: PMDC Brushed Motor
Gearbox type: Worm Gearbox
Voltage: 12V~24V
Gear Reduction Ratio: 1/69,1/180,1/330
Output Power: 5W

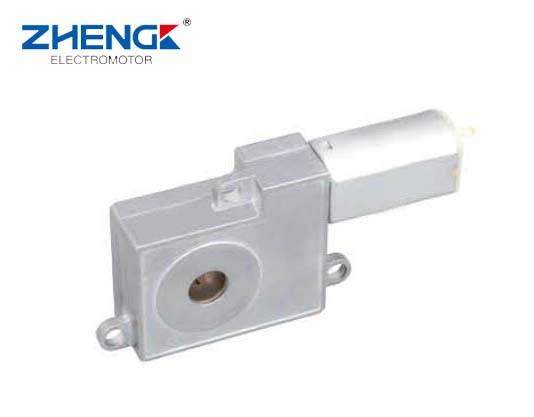

ZWL5865F390 PMDC brushed motor with gearbox for...
Model: ZWL5865F390
Motor Type: PMDC Brushed Motor
Gearbox Type: Worm Gearbox
Mechanical Features:
Housing material: Zinc-Alloy
Bearing type: Ball bearing
Radial Force: 8 Kgf Max
Axial Force: 5 Kgf Max
Max. Pressing Axial Force: 20 Kgf
Axial Play: 0.5mm Max
Radial Play: 0.1mm Max
600JSX/600ZWL DC Worm Gear Motor for Vending Ma...
Model: 600ZWL / 600JSX
Voltage: 12V~24V
Gear Ratio available: 1/50, 1/92,1/175,1/405,1/527
Output Power: 30W
This DC Worm Geared motor has with large self-locking torque, the shaft can not be rotated by a certain force when power is switched off.
It's widely used in automatic windows and doors, medical devices, and other household electrical appliances.
DC Worm Gear Motor JSX634 ZWL-31ZY Worm Gearbox
Model: JSX634-31ZY<ZWL-31ZY>
Motor Type: 31ZY PMDC Brushed Motor
Gearhead Type: Worm Gearhead
Bearing: Ball Bearing
Voltage: 12V~24V
Gear Ratio available: 1/32,1/49,1/74,1/101,1/218,1/290,1/505,1/634
Output Power: 5W~10W
Applications: Dispenser, Vending machine, advertising light,Drying rack,litter box, and other home & business automatics.
Worm gear motor ZGW1269FGG Zhengk Gearmotor For...
Model: ZGW-1269FGG
Voltage: 12V~24V
Double shaft
Gear Ratio available: 1/1251
Output Power: 20W
No load speed: 2rpm, 4rpm, 5rpm

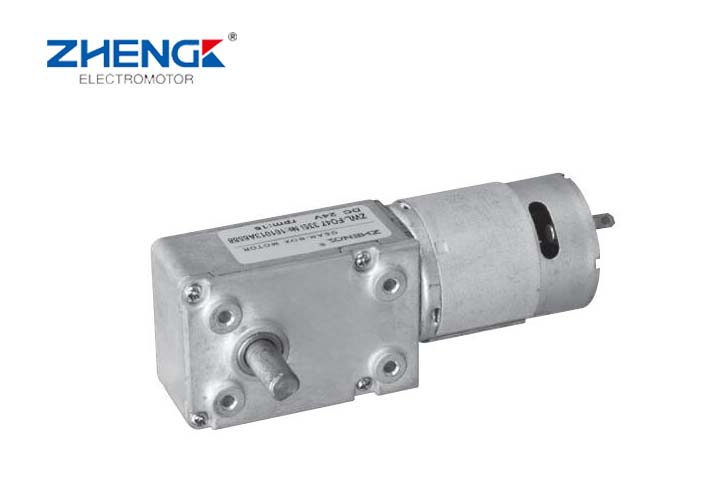

DC Worm Geared Motor Zhengke Brushed RS385 ZWL-...
Model: ZWL-47FO
Gearbox type: Metal Worm Gearhead
Bearing: Sleeve Bearing
Motor type: RS-385
Voltage: 6V~24VDC
Output Power: 1W~5W
Applications: Vending machines, Dispensers, Litter boxes, and other home automatics.

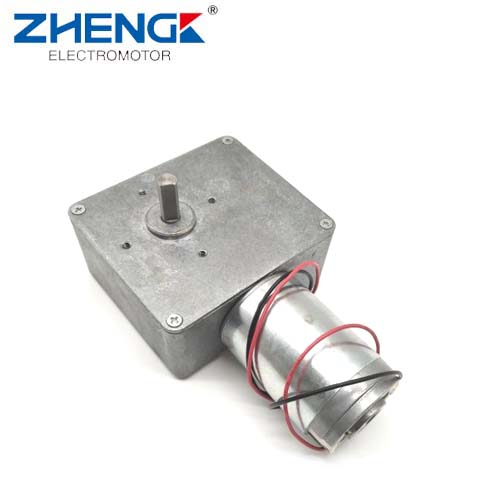

DC Worm Gear Motor Brushed 518JSX80-4468
Model: 518JSX80-4468
Motor Type: 4468 PMDC Brushed Motor
Gearhead Type: Worm Gearhead
Bearing: Ball Bearing
Voltage: 12V~24V
Output Power: 35W
Applications: Dispenser, Vending machine, advertising light,Drying rack,litter box, and other home & business automatics
